FP0305

#

P/N：FP0305-0XXR-TAXX
Pitch：0.30 mm
Height：2.00 mm
Type： Front-Flip
Angle：Right Angle
Number of contacts：13/15/21/23/25/31/39/45/ 51/51/61

Electrical


      Current Rating: 0.3A
      Voltage Rating: 50V
      Contact Resistance: 100mΩ
      Withstanding Voltage: 250V/1min
      Insulator Resistance: 50MΩ


Material


      Housing: High-Temp Plastic  UL94-V0

      Terminal: Copper Alloy

      Peg： Copper Alloy

档案下载

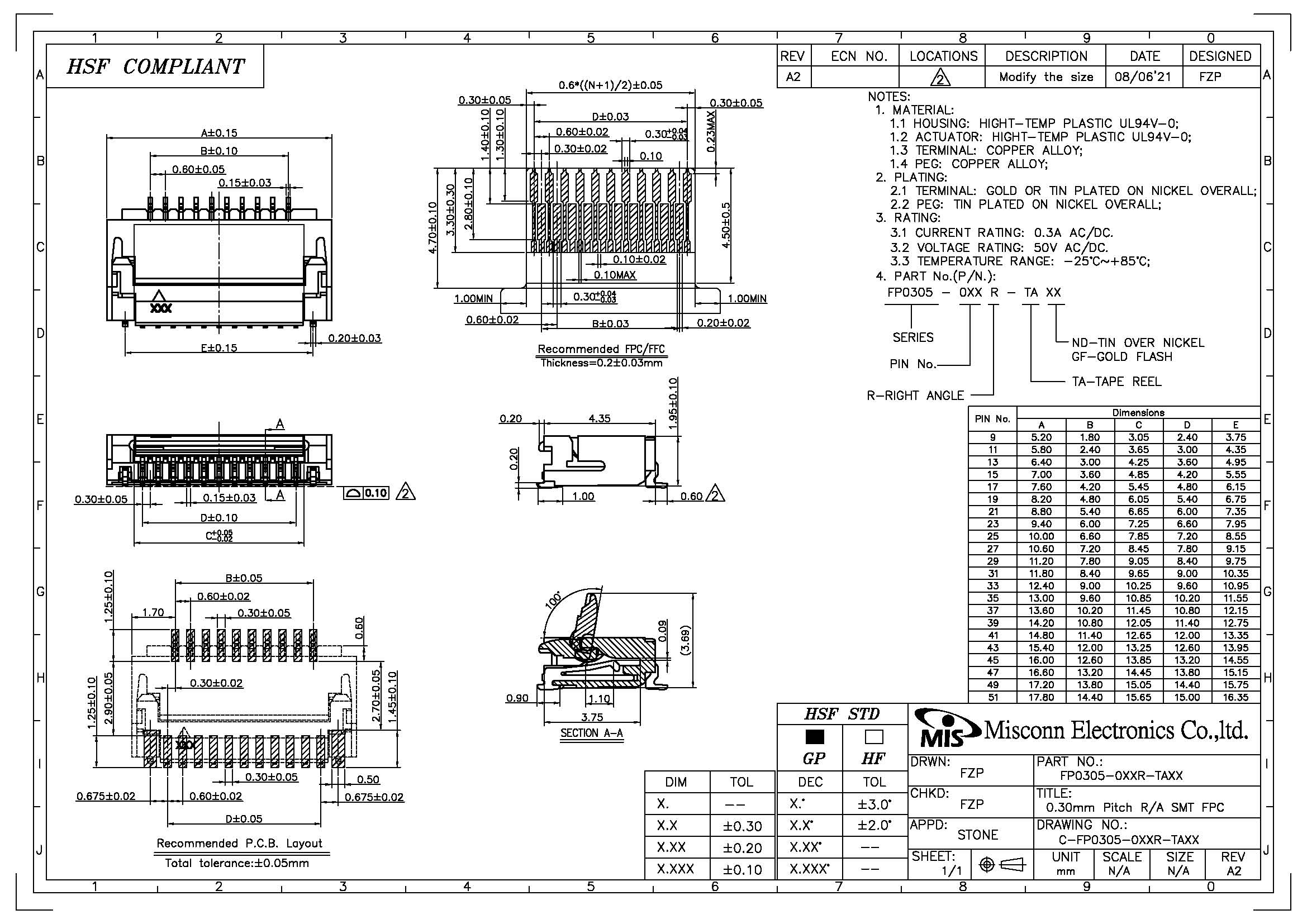

2D SPEC 3D
