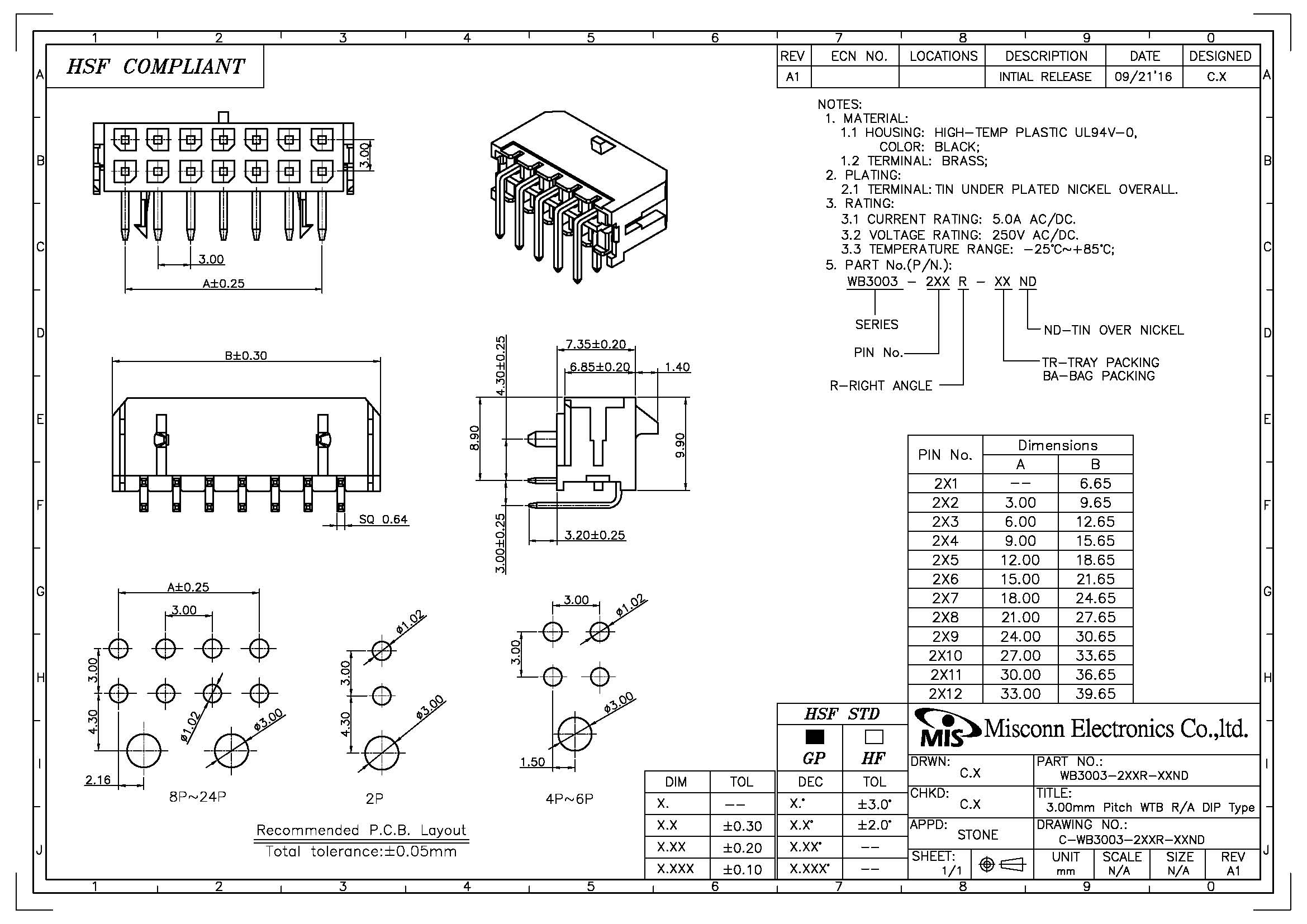

WB3003
P/N：WB3003-2XXR-BAXX Pitch：3.00 mm Height：8.75 mm Type：DIP Angle：Right Angle
Electrical
Current Rating: 5.0A Voltage Rating: 250V Contact Resistance: 20mΩ Withstanding Voltage: 1500V/1min Insulator Resistance: 1000MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
