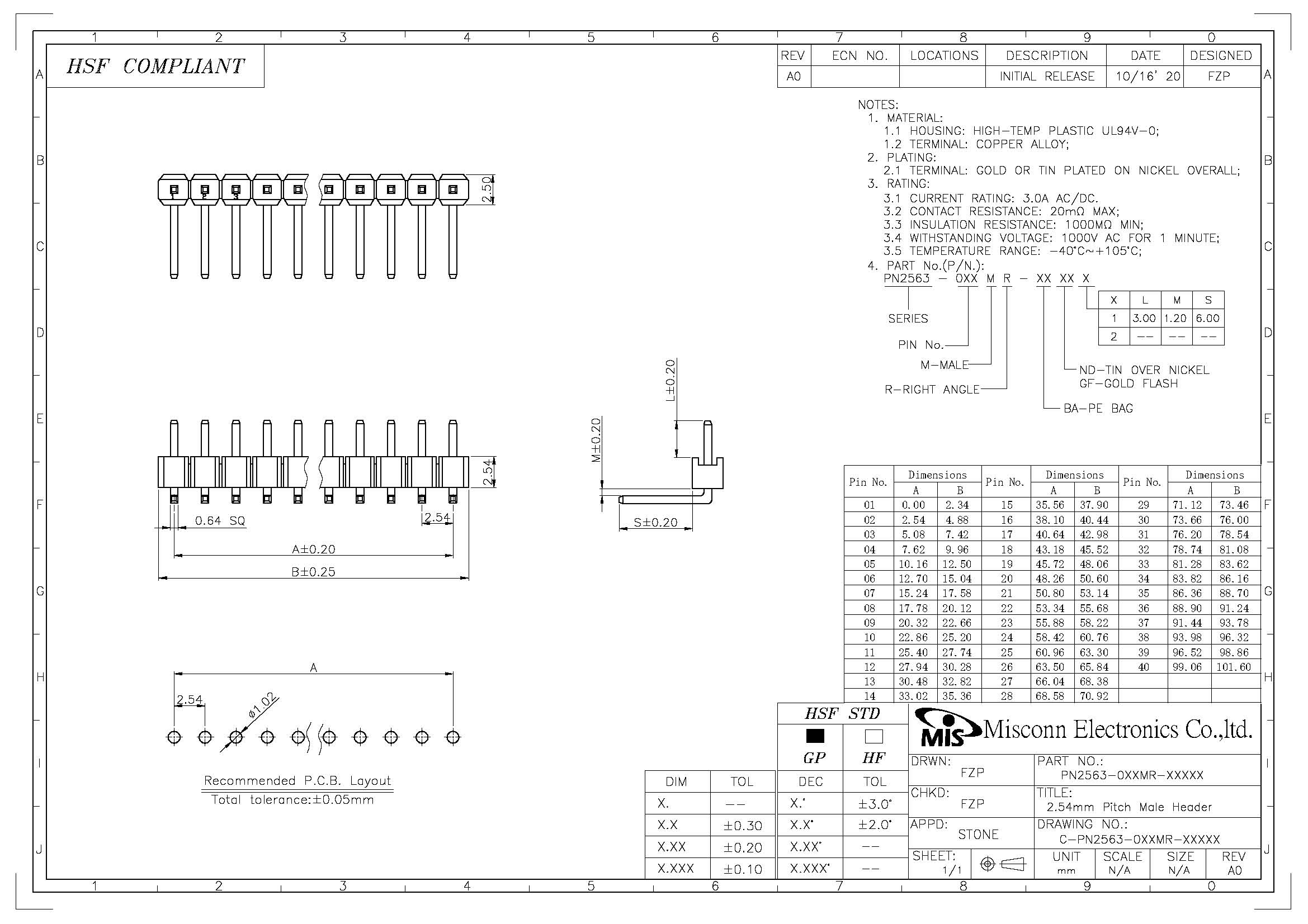

P/N: PN2563-0XXMR-XXXXX
Pitch: 2.54 mm
Housing Height: 2.54mm
Number of contacts:01~40
Type: DIP
Electrical
Current Rating: 3.0A
Voltage Rating: 200V
Contact Resistance: 20mΩ
Withstanding Voltage: 1000V/1min
Insulator Resistance: 1000MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
