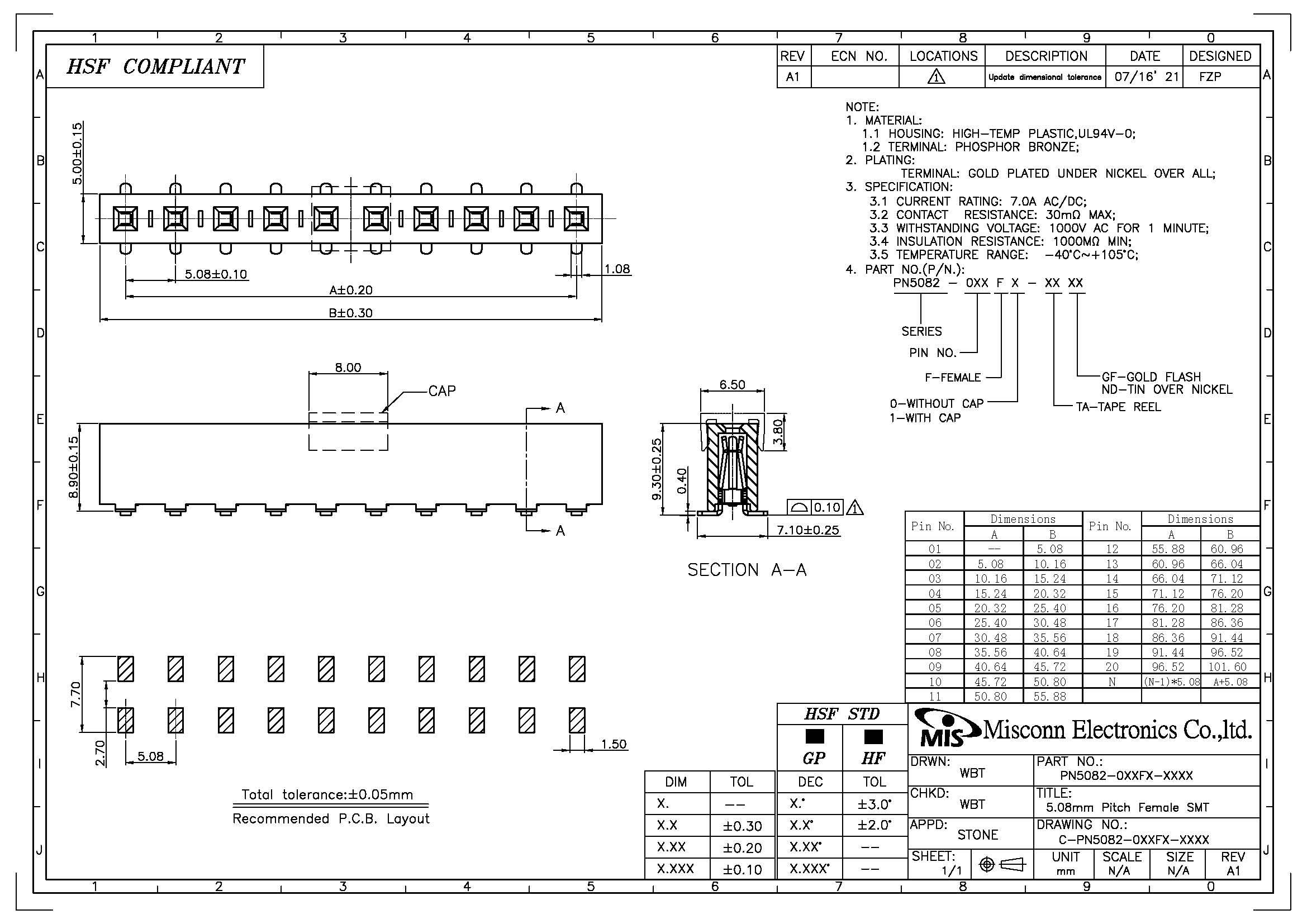

P/N: PN5082-0XXFX-TAXX
Pitch: 5.08 mm
Housing Height: 8.90mm
Number of contacts:01~20
Type: SMT
Electrical
Current Rating: 7.0A
Voltage Rating: 600V
Contact Resistance: 20mΩ
Withstanding Voltage: 1000V/1min
Insulator Resistance: 1000MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
