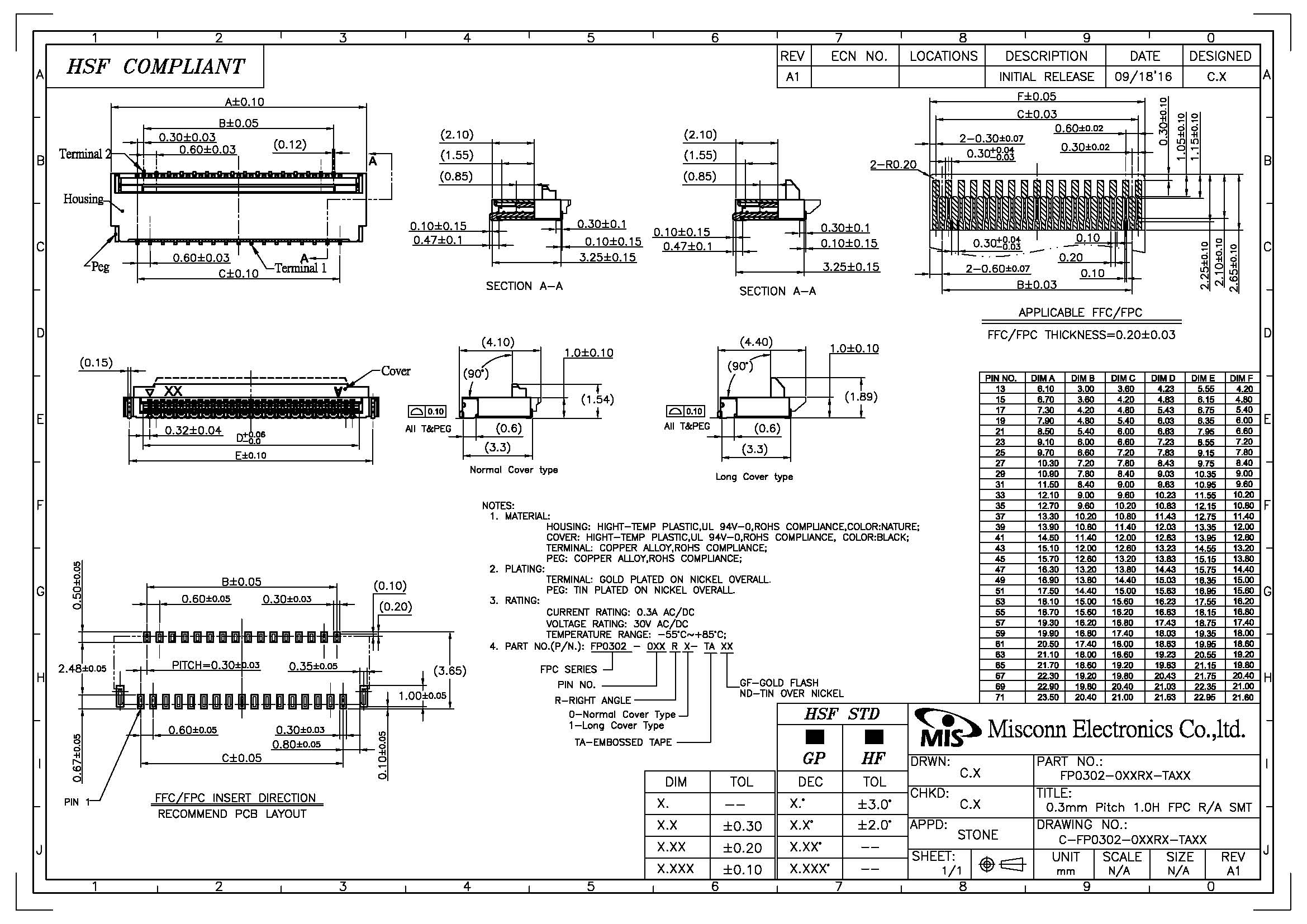

P/N：FP0302-0XXR-TAXX
Pitch：0.30 mm
Height：0.90 mm
Type： Back-Flip
Angle：Right Angle
Number of contacts：11/13/15/21/23/25//31/33/35/39/41/45/51
Electrical
Current Rating: 0.3A
Voltage Rating: 30V
Contact Resistance: 100mΩ
Withstanding Voltage: 500V/1min
Insulator Resistance: 50MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
Peg: Copper Alloy
档案下载
2D
SPEC
3D
