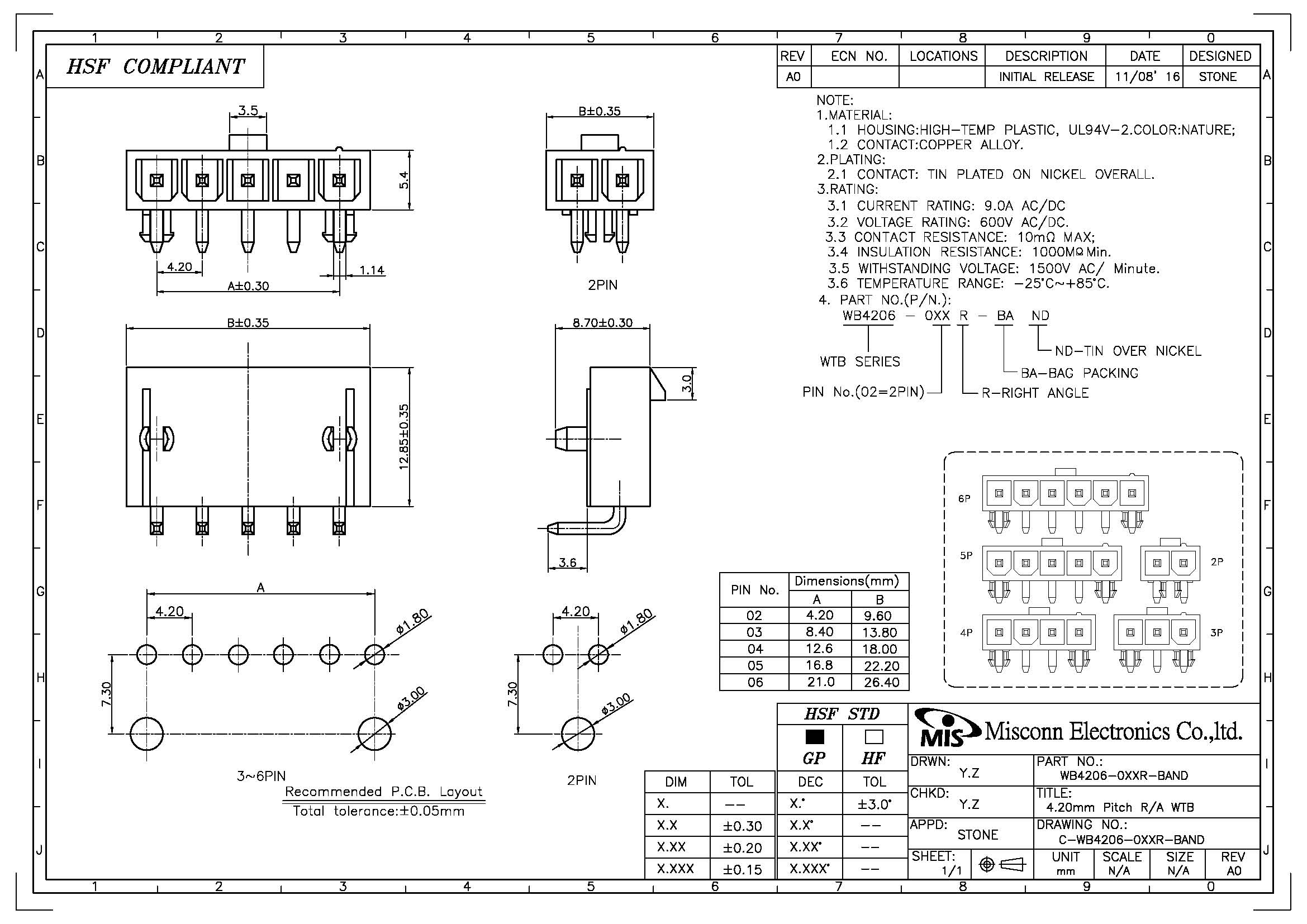

WB4206
P/N：WB4206-0XXR-BAXX Pitch：4.20 mm Height：7.35 mm Type：DIP Angle：Right Angle
Electrical
Current Rating: 9.0A Voltage Rating: 600V Contact Resistance: 10mΩ Withstanding Voltage: 1500V/1min Insulator Resistance: 1000MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
